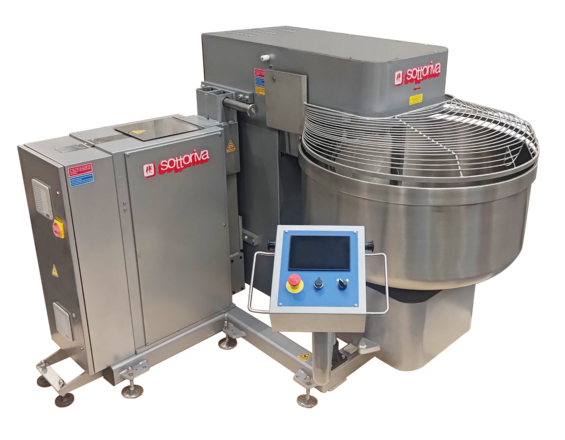

The machine is composed of a SINTESI+ spiral mixer and a hydraulic tilting device for the pouring of dough onto a table or into a hopper of the divider, placed on the right or on the left-hand side of the machine.
STRUCTURE AND TECHNICAL FEATURES OF TILTING MACHINE
- Heavy duty painted steel structure.
- Lifting system by means of a gear case and hydraulic piston, in case of high discharge on double hydraulic piston divider.
- The machine works as long as the controls are pressed, in conformity with the safety standards.
- Safety valve for automatic locking in the event of breakdown.
- Current stainless-steel chute for dough discharge on DIVIDER up to 200 kg included.

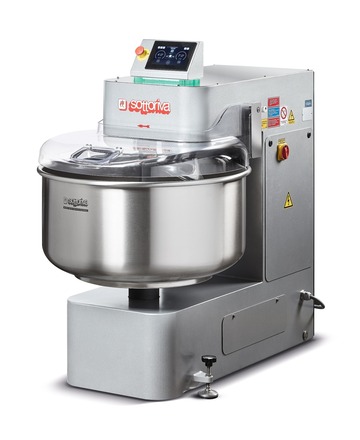

TECHNICAL FEATURES OF SINTESI+
- High-performance belt drive for bowl and spiral rotation and dedicated high-power motors (INCREASED compared to standard version).
- 7" touch screen control panel allowing two working modes:
o AUTOMATIC;
o MANUAL.
- · Three selectable dough modes with different spiral rotation speeds for handling different types of dough: low, medium, and high hydration.
- LED light in the under head for lighting the bowl.
- External LED lights to indicate machine status: running, pause, alarm, end of cycle.
- The change from the first to the second mixing speed and the stopping of the machine happens automatically.
- Possibility of pulse-controlled rotation of the tank, with open guard, to facilitate emptying.
- Possibility to reverse the bowl rotation in first speed.
- Motor protection from overload and overvoltage.
